HRB Awesomatix Horizontal Rear Bodypost Set

The Horizontal Rear Bodypost Set (HRB) lowers the center of gravity.
This improves the handling and cornerspeed of your car which leads to faster laptimes.

Furthermore the bodyshell will become more stiff in the rear end section and has less deflection at high speed at thus.

Fits all A800 models beside A800FX.

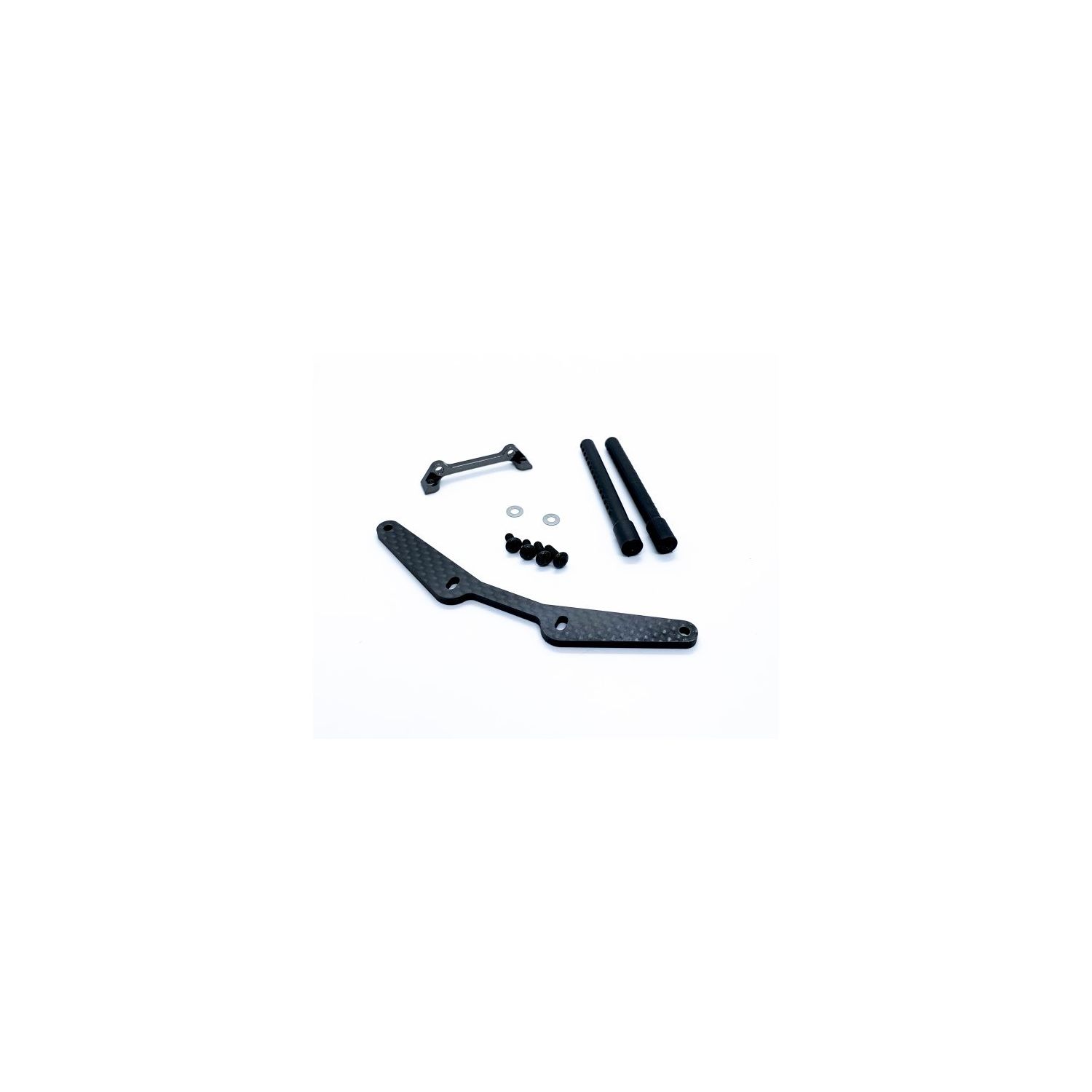

1x C05-H
1x AM126
2x SB3x8
2x SB3x6
2x SH0.25
2x P14-2

The Horizontal Rear Bodypost Set (HRB) lowers the center of gravity. This improves the handling and cornerspeed of your car which leads to faster laptimes. Furthermore the bodyshell will become more stiff in the rear end section and has less deflection at high speed at thus.

The intallation of the HRB set is very easy. Remove the kit AM05C Rear Holder by two screws and install the HRB set with the included steels screws. We recommend to NOT use Alloy screws at this area.

C05-H offers the possibility for height adjustments in the center of the part. You are able to slide the whole rear holder up/down.

In the case you need to raise the bodyshell further than the adjustment of C05-H allow, you can add shims between the bulkhead and the AM126 HRB Holder.

Cut the P14-2 Bodyposts to desirable length to fit your bodyshells. We recommend to not let stick out more than "two holes" of the rear end of your bodyshell.

This picture shows how low the rear end is with HRB set installed. Some may think there isn't much a difference, but we can tell clearly, there is a big difference in terms of "center of gravity".
