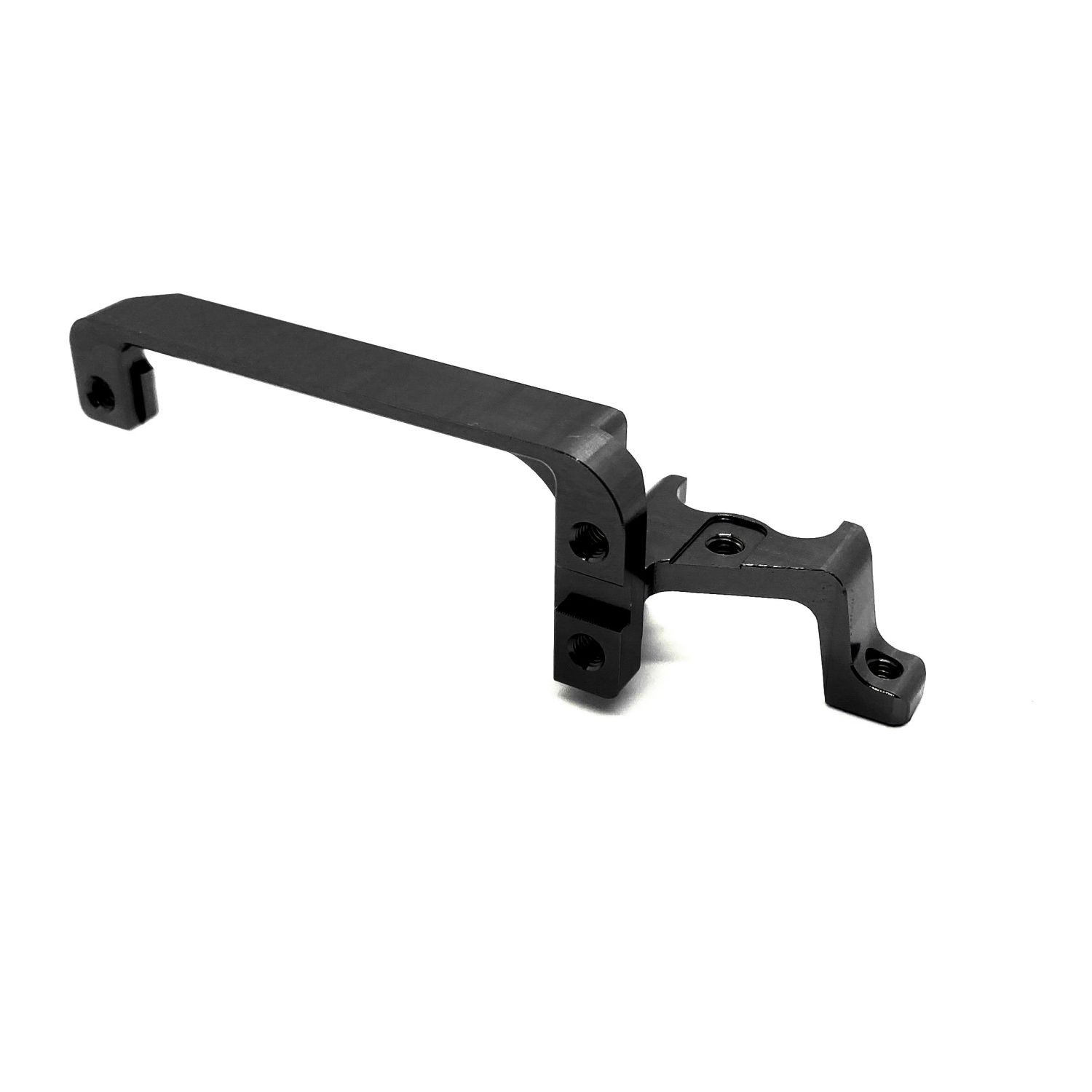

AM24-20 Awesomatix Servo Holder

AM24-20 optional Servo Holder for all A800 car models (beside A800FX) in combination with SB1 Steering.

This new designed part combine servo holder and steering holder to one single part. It offers a more equal chassis flex as the Servo holder doesn't need to be screwed outside of the chassis center line.

Contains 1pcs A800-AM24-20 Above is the AM24-8 Servo Holder and the AM152 SB1 Steering Stand. Below is the AM24-20 Servo holder which combines both parts to one pcs.

Servo and Steering will be one compact unit.
This is how it looks after installation of the Servo and the SB1 Steering Parts.


By using AM24-20 the Servo is 1mm more "forward" than with std. AM24-8.
This means 1mm less shims will be needed at the Servo Horn. Futhermore the servo is 0.3mm moved to left for improved clearance with the belt.



The installed unit in the car.
Please remind out recommendation of the Manual about the Servo Horn height. It shouldn't be higher than 16,5-17.0mm from middle to middle of the hole. Otherwise the action of the Steering can be to quick and less precise.
