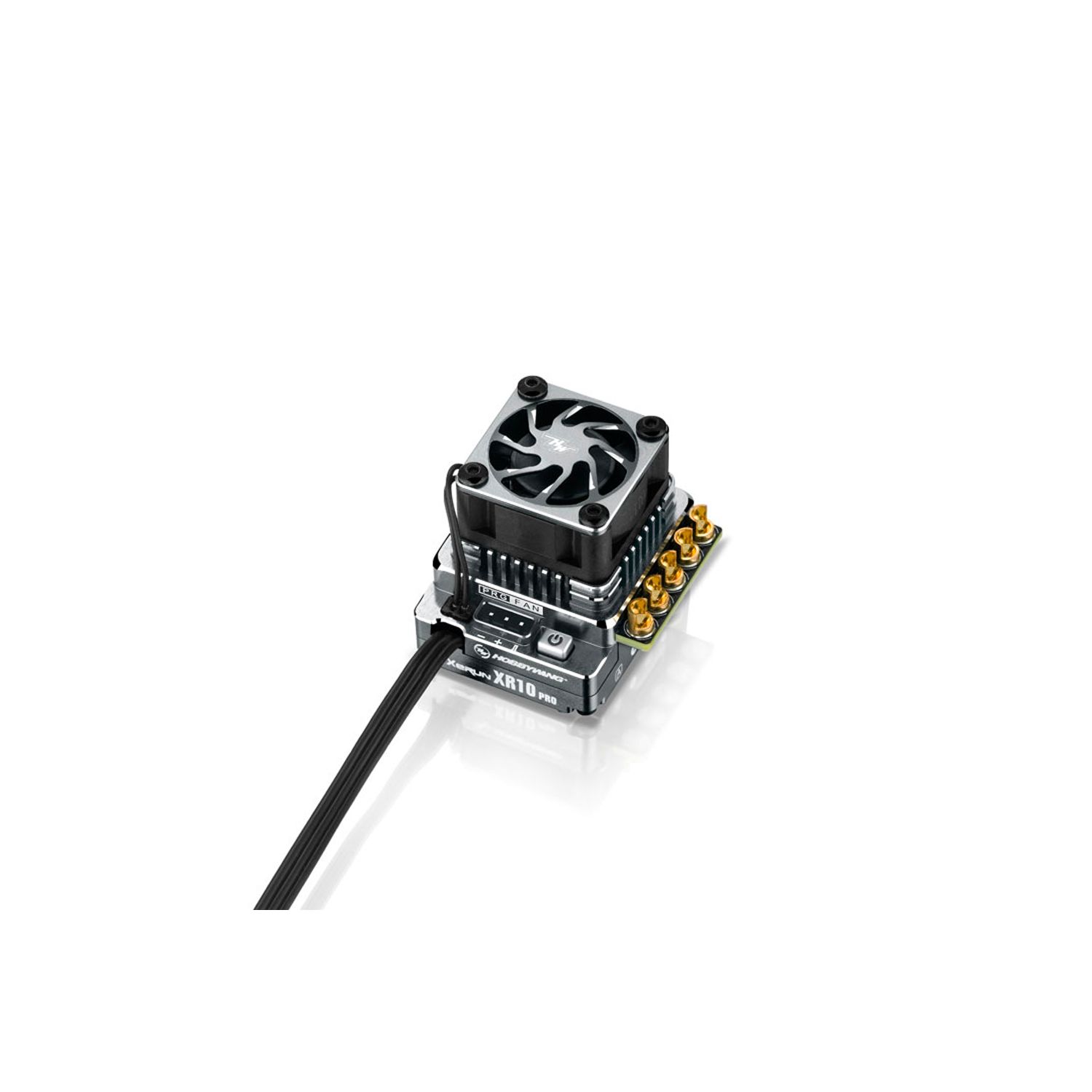

Hobbywing Xerun XR10 Pro Elite G2S Brushless ESC 160A

New Hobbywing Xerun XR10 Pro Elite G2S

The new Hobbywing Xerun XR10 Pro Elite G2S Brushless ESC 160A has a high-performance 32-bit M4 microprocessor greatly improves processing capability make the more complicated and precise data operation possible, that allows the ESC to have a very rapid response and a remarkable potential to optimize and extend its functions. Hardware for professional racing combined with powerful software turns the ESC into a “sharp weapon” for top racing.

The new esc is reverse polarity protected. In an event when a user makes a mistake by reversing the polarity, the ESC will not be broken.

The frameless fan design is a patented technology. The rapid transmission of internal heat to the integrated housing radiator are made up of high airflow from the side of the fan and a copper thermal conduction sink on the internal power plate. These are built into high-reliability thermal systems to ensure that it is always in good thermal condition.

The all-new frameless fan blades uses a special material andare extremely hard and reliable. It greatly reduces the damageof the fan blades caused by the impact of small stones, sandand other foreign objects. Thus, reduces the failure rate of thefan than compared with the traditional pbt fan.Note: The elite version is equipped with an ordinary fan.

Precisely adjustable throttle andbrake PWM frequencies

The Throttle and Brake PWM Frequency support the ability to customize thefrequency of each throttle segments. For example, the variables on the frequency arefully adjustable for precise control to meet the requirements of different driver needs

Extended Range of Max. Brake Force(Extra Brake: 101%-150%)

Extra brake provides the bigger brake force than standard brakes. Even if it’s appliedin the Stock/Blinky class by vehicles with a very small gear ration/FDR, it can stillguarantee sufficient brake force.

New drag acceleration adjustment

This parameter is used to control the speed of the drag-brake response. Setting a suitable value can improve the dragbraking effect of the vehicle, thus, improving drivability to suit each user.The value can be adjusted up to 20 levels. Increasing the value will result in a greater drag brake effect.

Note: The standard capacitor included in the ESC will be damaged when the polarity is reversed. By selecting the optional non-polarity capacitors (Item number: 30840004, 30840005), it will be able to prevent any sort of damages from happening.
